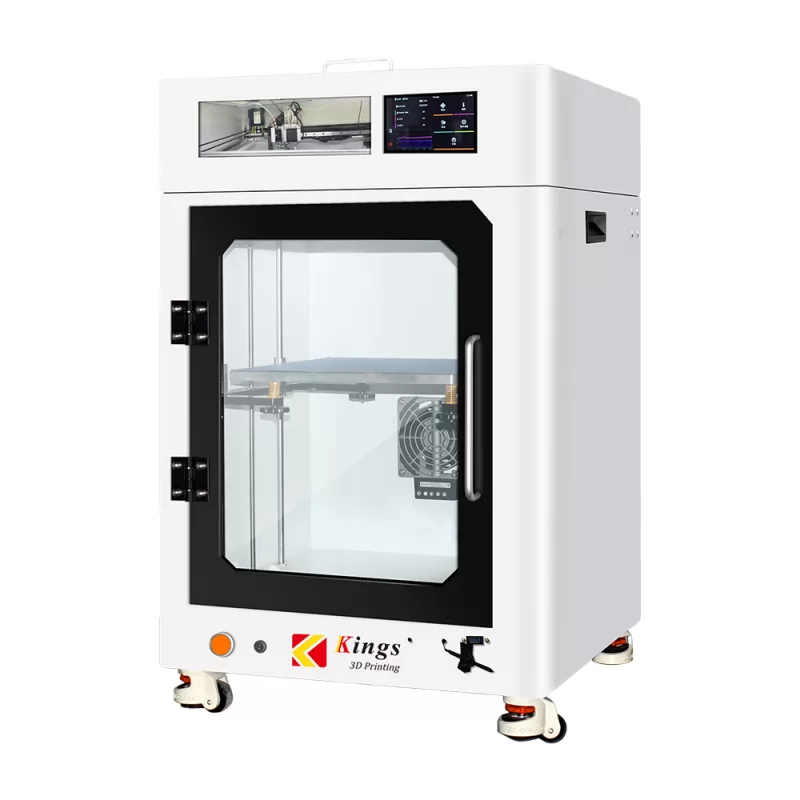

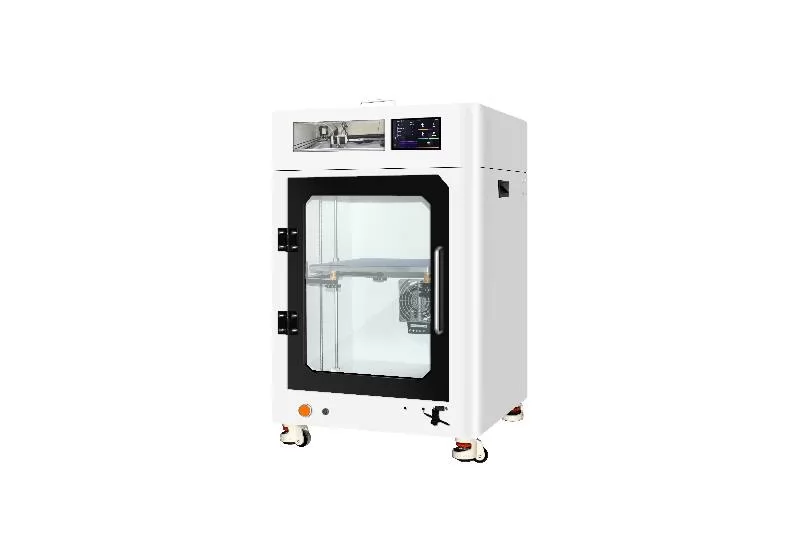

FDM 3D Printer 3040

Printing Size: 300*300*400mm

Machine Size: 530*520*825mm

Printing Speed: 30-350mm/s

Nozzle Temperature: Max 320℃

Number of Nozzles: 1

Printing Color: Single Color

Product Details

Features

- Klipper high-speed system
- 5-inch HD capacitive touchscreen
- Industrial-grade linear guides for XY axis
- Leadshine high-precision servo motors for XY axis (closed-loop drive)
- Dual Z-axis synchronized integrated leadscrews
- BMG dual gears
- 70W high-power heating rod, Volcano nozzle extruder for high-speed printing
- Internal temperatures up to 60℃, easily printing high-temperature materials like ABS and PLA.

Datasheet

Model	3040
Printing Size	300300400mm
Layer Resolution	0.05-0.35mm (0.4 Nozzle)
Whether Having An Air Filtration System	Dual-fan Filtration System
Whether Supporting Wi-Fi File Transfer	Yes
Whether Supporting Filament Runout Pause Alarm	Yes
Number of Nozzles	1
Print Head	Single Color Printing
Printing Speed	30-350mm/s
Motion System	XY-axis Synchronous Belt Linear Guide, Dual Z-axis Integrated Synchronous LeadsCrew Motor
Forming Drive	Leadshine Closed-loop Servo Motor Group for XY-axis (42cme08 + CL1-507)
Chassis Structure	Fully Enclosed Constant Temperature Chassis (Double Door)
Filament Storage Box	Hanging Type
Lighting function	Built-in LED Lighting

Extruder Diameter	0.6/0.8/1.0mm
Extruder Working Temperature	0-320℃
Heating Platform	Independent Power Supply Silicone Heated Bed + 12mm Aluminum Plate + Detachable Magnetic Steel Plate
Display Characteristics	5-Inch HDMI HD Capacitive Screen
Central Processing Unit (CPU)	32-bit ARM CPU Microcontroller
Printing Methods	USB Drive, LAN (Wi-Fi)
Power Requirements	AC100v-AC240v 50Hz-60Hz
Supported File Formats	STL, OBJ
Operating System Support	Windows/Linux/MAC
Machine Surface Treatment	Sheet Metal with High-Temperature Baking Paint, Creating a Unique Appearance
Machine Dimensions	530520825mm
Packaging Dimensions	620580930mm
Gross Weight	≥48kg
Packaging Specifications	High-Strength Packaging Box That Meets Export Standards

Compatible Printing Materials:

Recommended PLA (eco-friendly, non-toxic), ABS, and other standard 1.75mm diameter 3D printing materials
