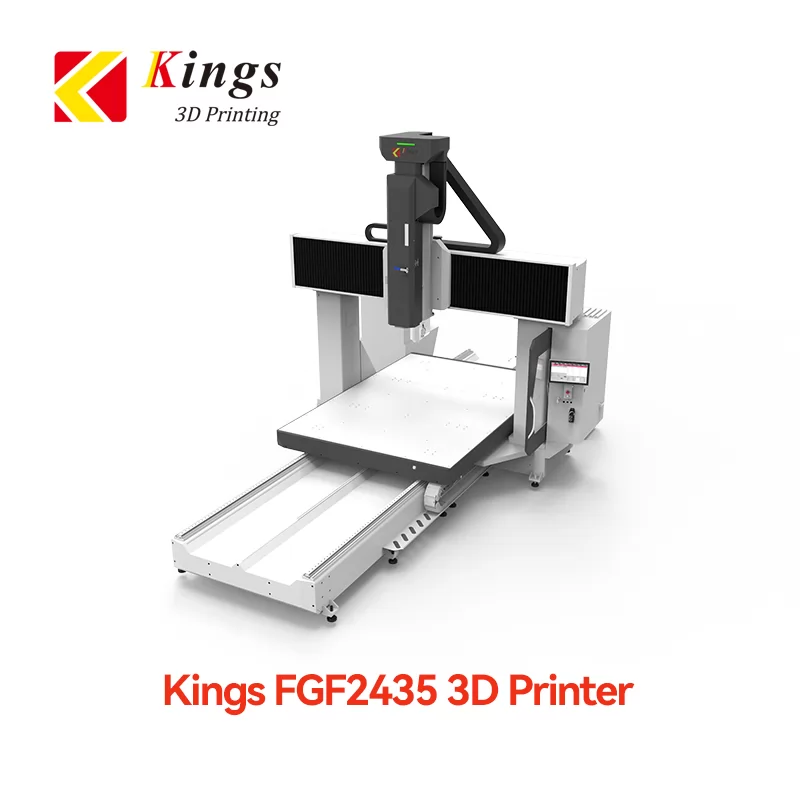

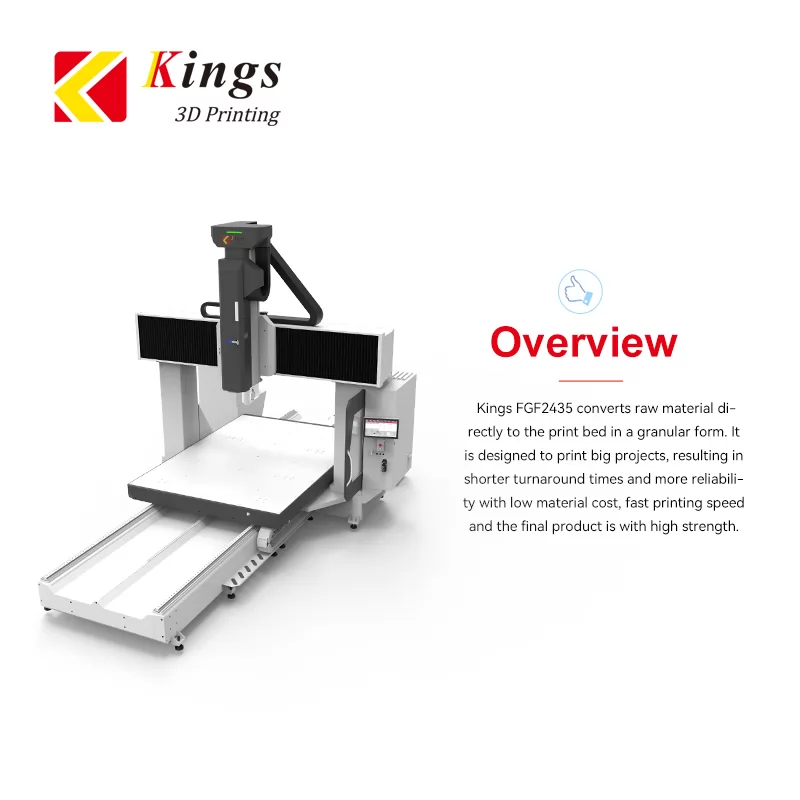

Kings FGF-2435 3D Printer Overview:
Kings FGF2435 converts raw material directly to the print bed in a granular form. It is designed to print big projects, resulting in shorter turnaround times and more reliability with low material cost, fast printing speed, and the final product with high strength.

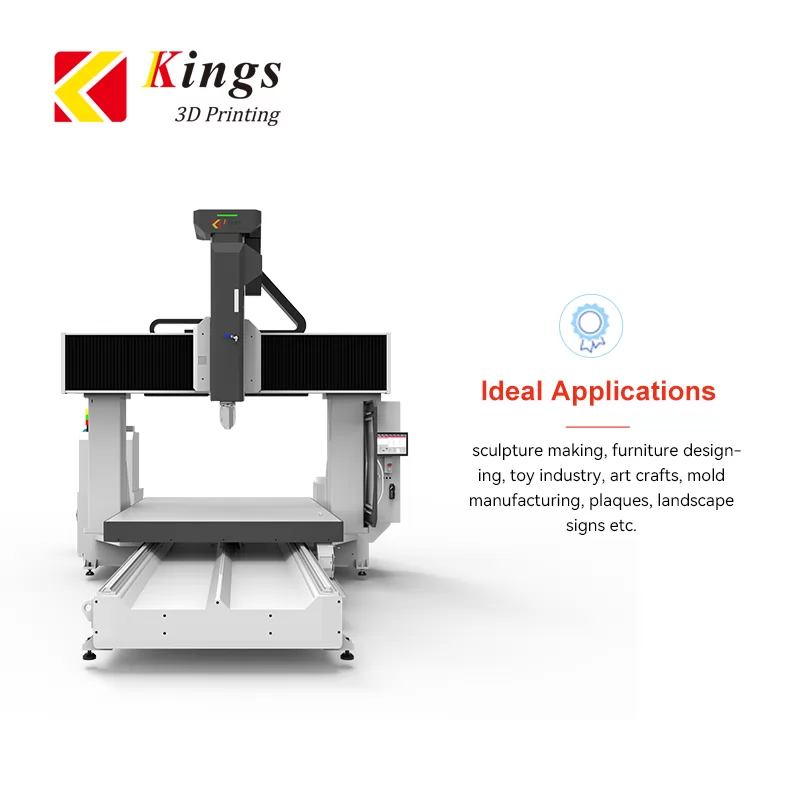

Ideal Applications：
It is widely used for sculpture making, furniture designing, the toy industry, art crafts, mold manufacturing, plaques, landscape signs, etc.
Parameter：
Machine model | FGF-2435 |
Molding technology | FGF fused grain structure |

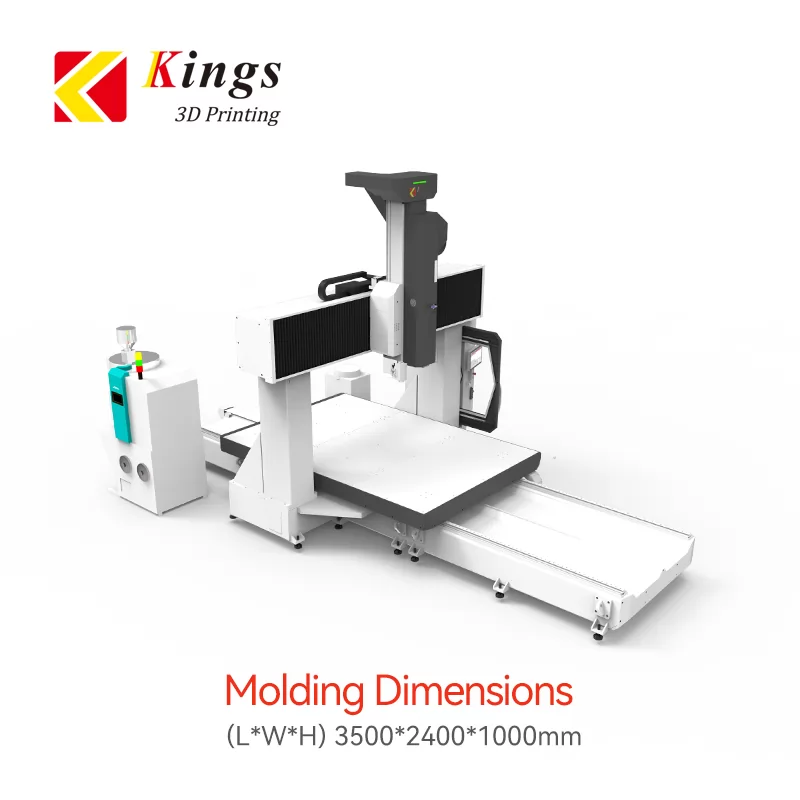

Molding Dimensions (L*W*H) | 3500*2400*1000mm |

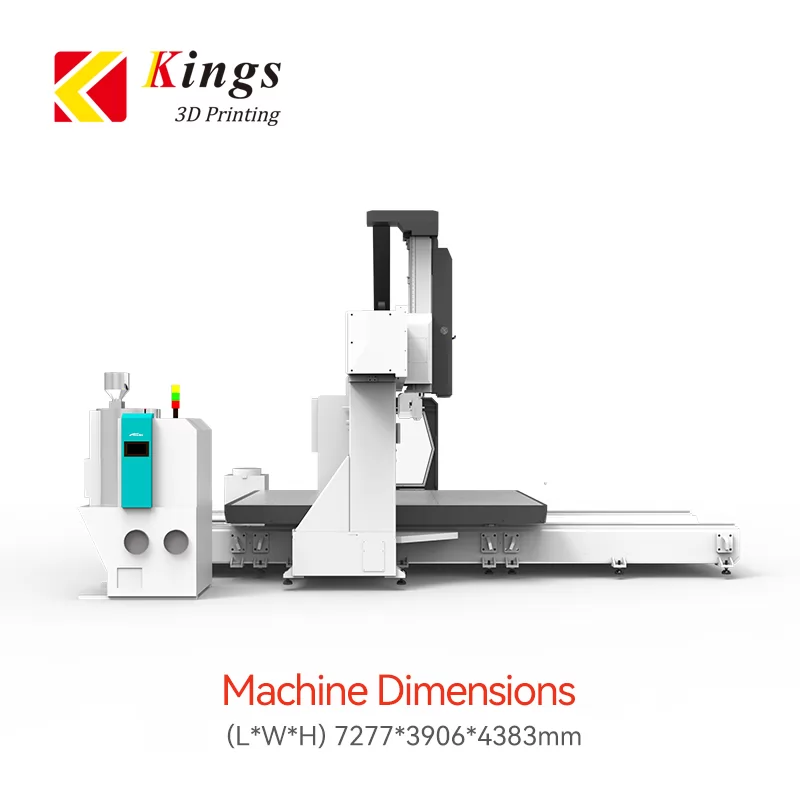

Machine Dimensions (L*W*H) | 7277*3906*4383mm |
Customizable version | Add material, reduce material, increase and decrease integration, lengthen |
Optional functions | Oblique printing, vertical printing function |
Working surface temperature | ≤120 degrees Celsius |
Table contact surface | Magnetic platform |
Optional nozzle diameter | 3-16mm |
The highest temperature of the nozzle | ≤450 degrees Celsius |
Nozzle heating method | Four-zone intelligent heating |
Print connection | USB |
Slicing supported formats | STL/OBJ/AMF/3MF |
Compressed air pressure | 0.6MPA |
PLA/PETG/ABS/PC/PA/HDPE/TPU/TPV/EVA optional printing materials | PETG+GF/PPS+GF/PA+GF/ABS+GF/PC+CF/PEI+CF etc. |
Material particle diameter | 1-5 mm |
Storage hopper volume | 100kg |
Automatic feeder | (integrated) |
Power supply voltage | 3-phase AC 380V |
Rated power | 70 kW |
Machine weight | 11000 kg |
