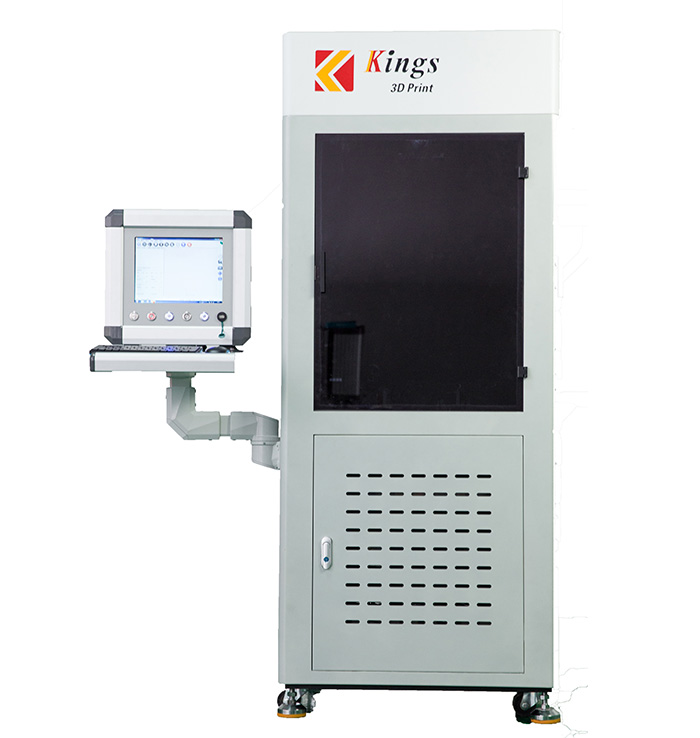

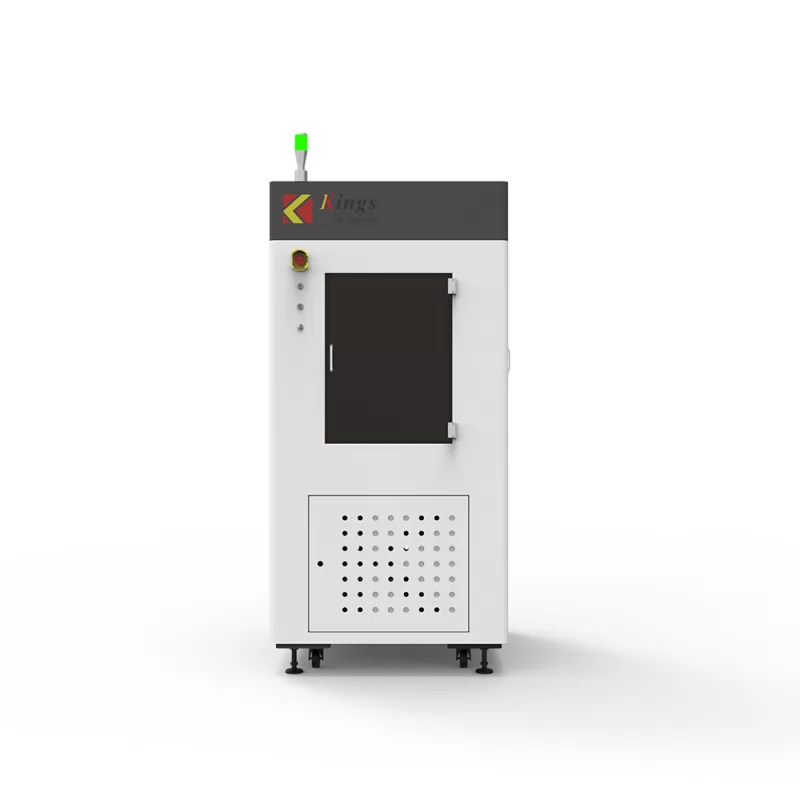

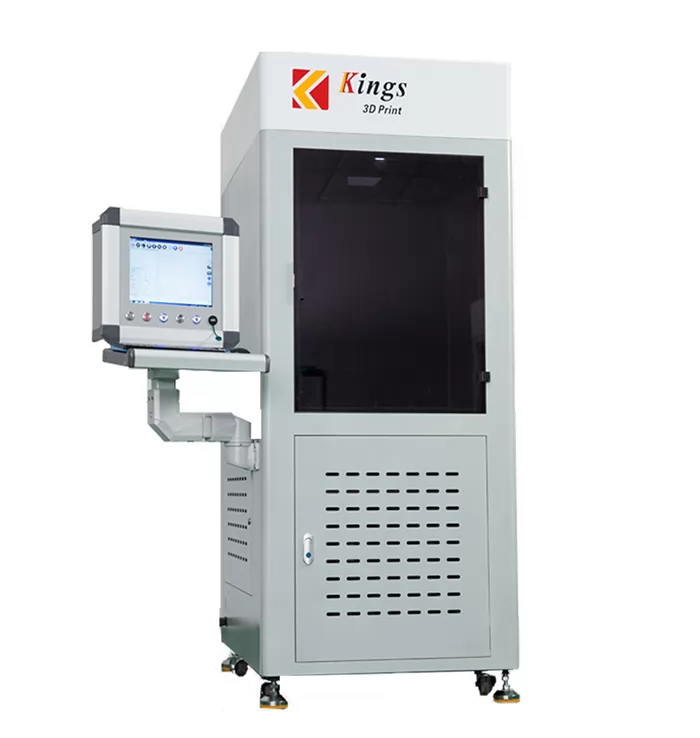

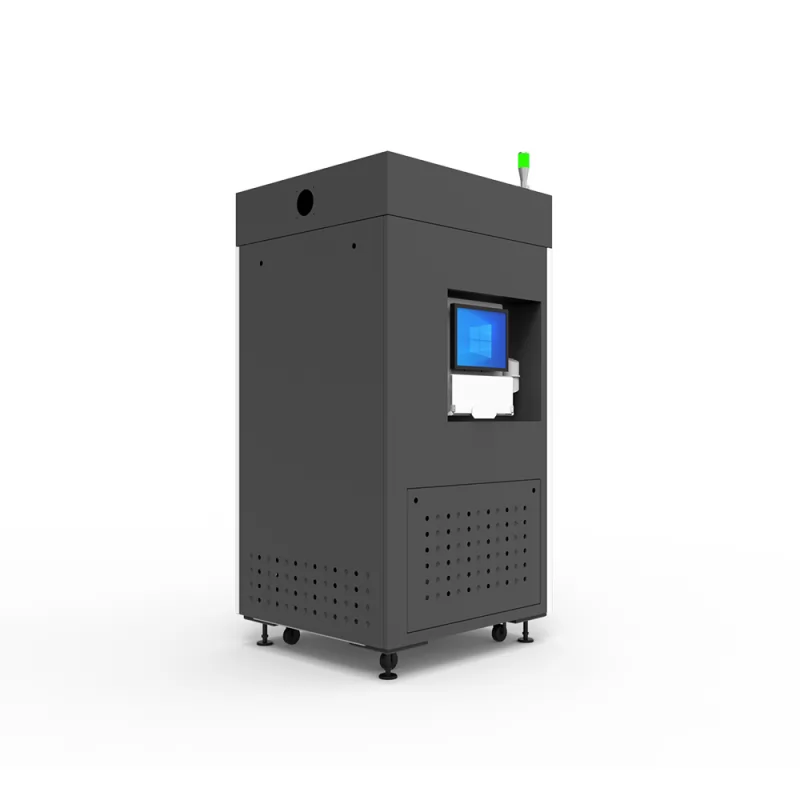

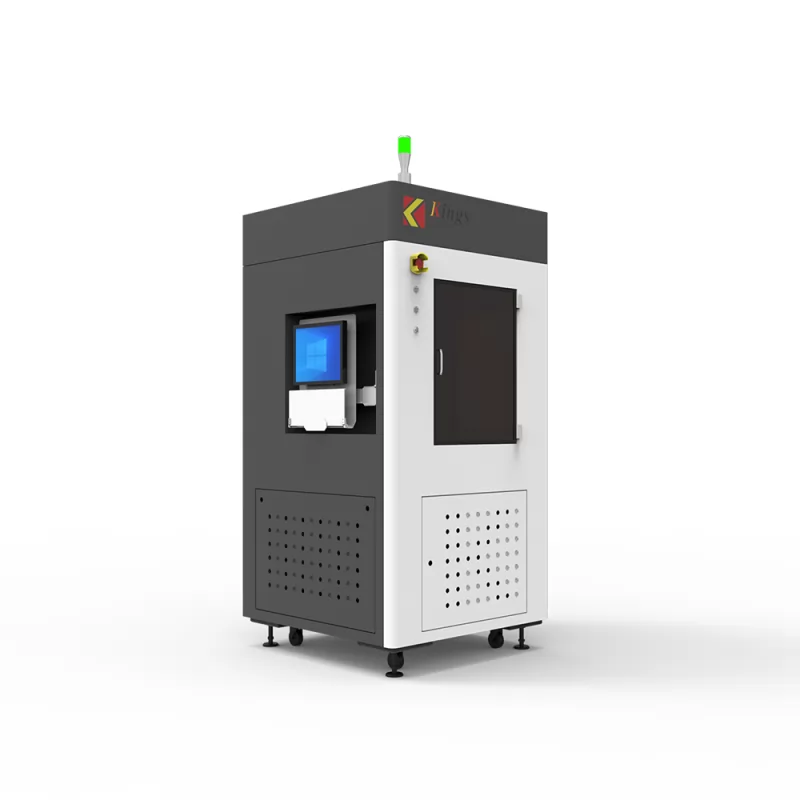

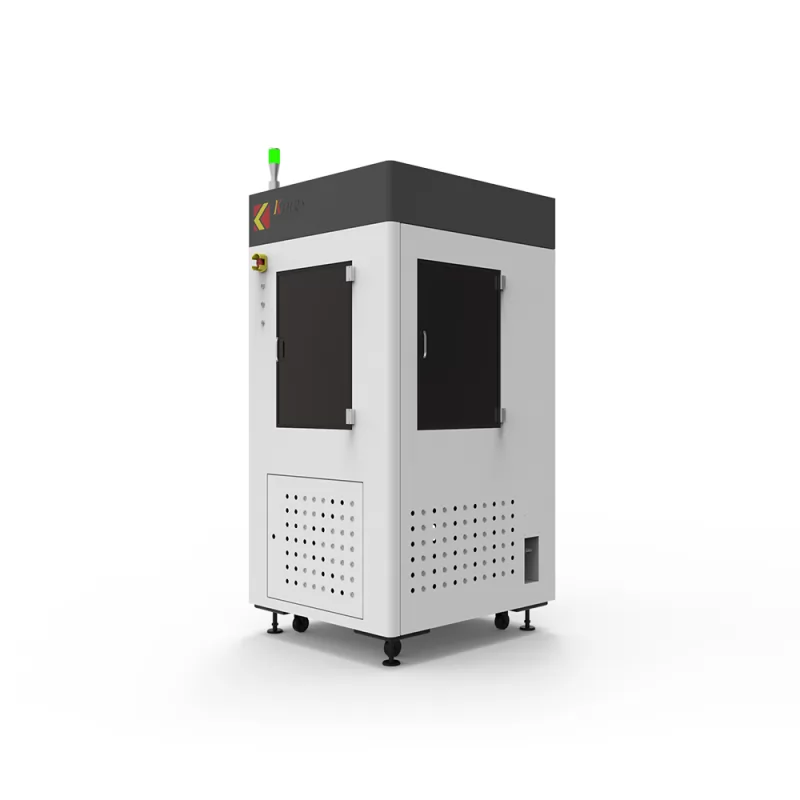

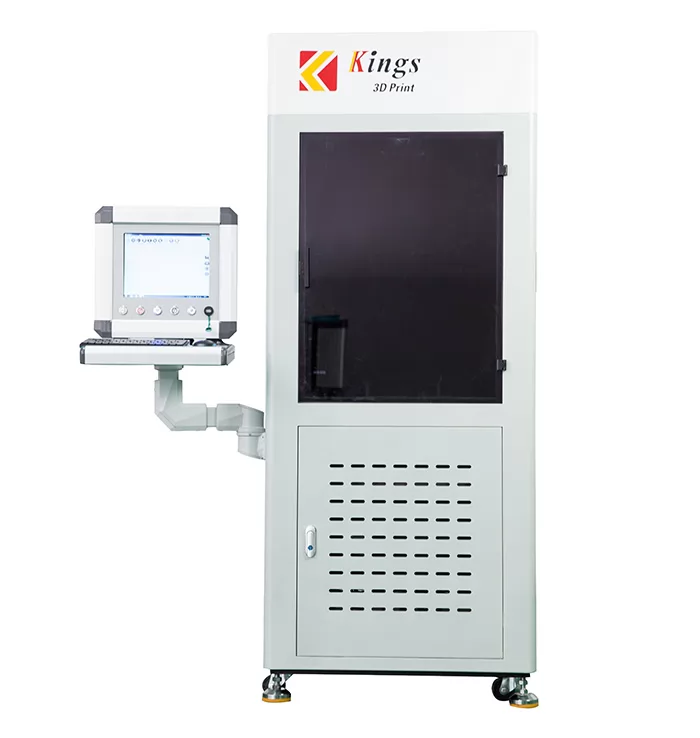

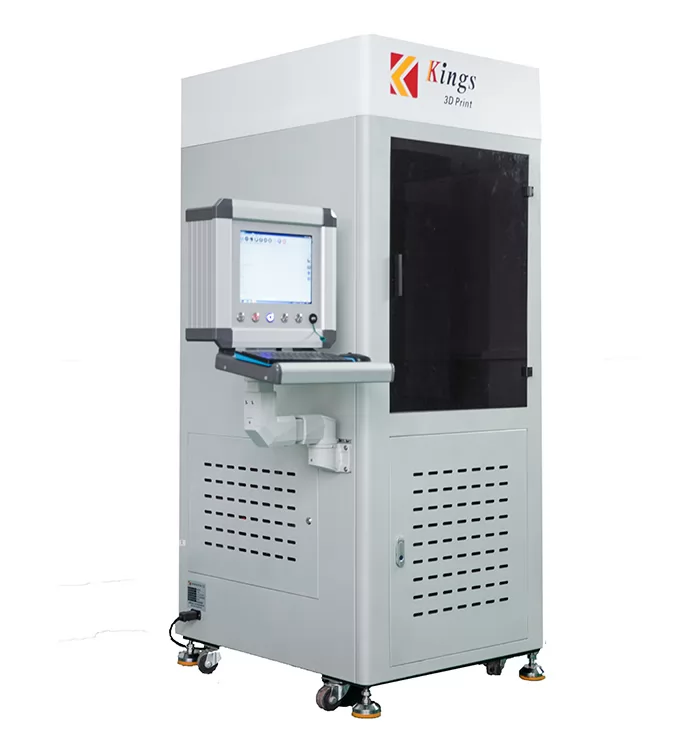

Industrial 3D Printer Specification
| BASIC INFORMATION |
|
| Max Printing Size | 300*350*350mm |
| Machine Size | 94cm(W)*102cm(D)*192cm(H) |
| Rated Power Consumption | 1.2KVA |
| Machine Weight | About 780kg |
| LASER SYSTEM |
|
| Laser Type | Solid-state frequency tripled Nd: YV04 |
| Wavelength | 355nm |
| Power | Resin Surface Power≥ 300 mW |
| OPTICAL & SCANNING SYSTEM |
| Scanning Mode | Germanic galvanometer scanner |
| Variable Beam System | Galvo/Closed-loop |
| Beam Size (diameter @1/e2) | 0.065-0.8mm (Variable Beam) |
| Max Scanning Speed | 12.0m/s |
| RECOATING SYSTEM |
| Main Sturcture | Marble recoater frame, marble elevator holder and marble scanning system base |
| Coating Mode | Intelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005mm |
| Repeat Positioning Accuracy | ±0.01mm |
| Layer Thickness | 0.05mm~0.25mm |
| Accuracy | L≤150mm, ±0.1mm;
L＞150mm, ±0.1%*L |
| CONTROL SOFTWARE |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| Input Data File Format | STL/SLC |
| Operating System | Windows 7/10 |
| Network Type and Protocol | Ethernet，TCP/IP |
| INSTALLATION CONDITION |
| Electrical Requirement | 200-240VAC 50/60Hz, single-phase,10A |
| Ambient Temperature | 20-26ºC (72-79℉) |
| Relative Humidity | ＜40%，non-condensing |
| First Tank Resin | About 80kg |
| WARRANTY |
| Machine | Two years |
| Laser | Two years |
Function of 3D Printer
Industrial 3D Printer can directly form objects of other shapes from computer graphics data without machining or molds, which greatly shortens the production cycle of products and improves productivity. Although it still needs to be improved, the market potential of 3D printing technology is huge, and it will inevitably become one of the many conquering technologies in the future manufacturing industry.
3D printers are mainly used in many fields such as equipment manufacturing, aerospace, automobiles and parts, and intelligent manufacturing. As the world's latest generation of Industrial 3D Printers, 3D printers have achieved a groundbreaking speed of 10 times faster, cost reduced by half, and strength close to metal. skill improved. The 3D printer fully displays the functions of batch and large-scale production.
