Overview

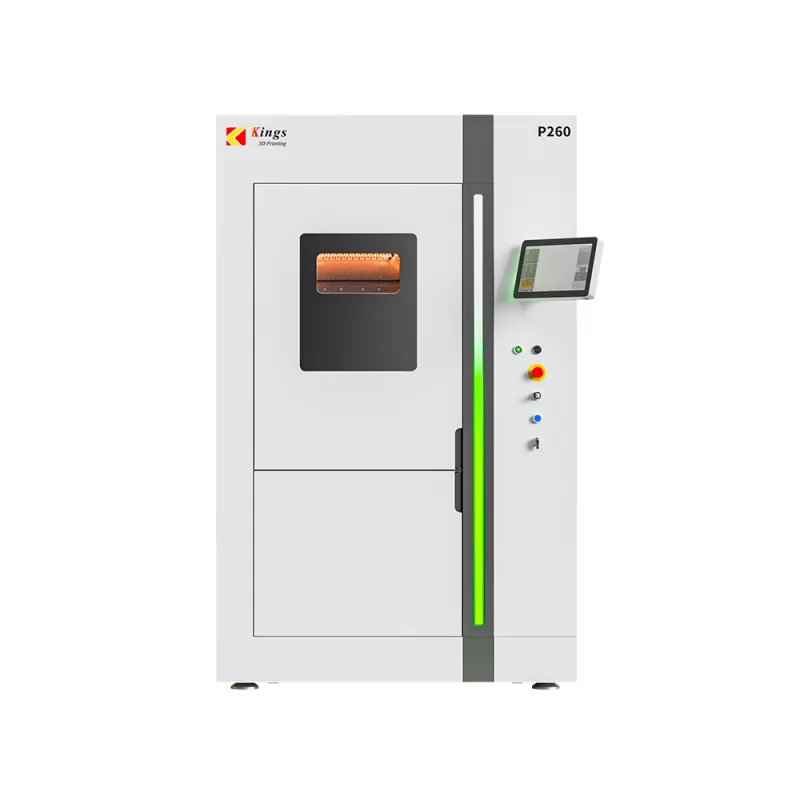

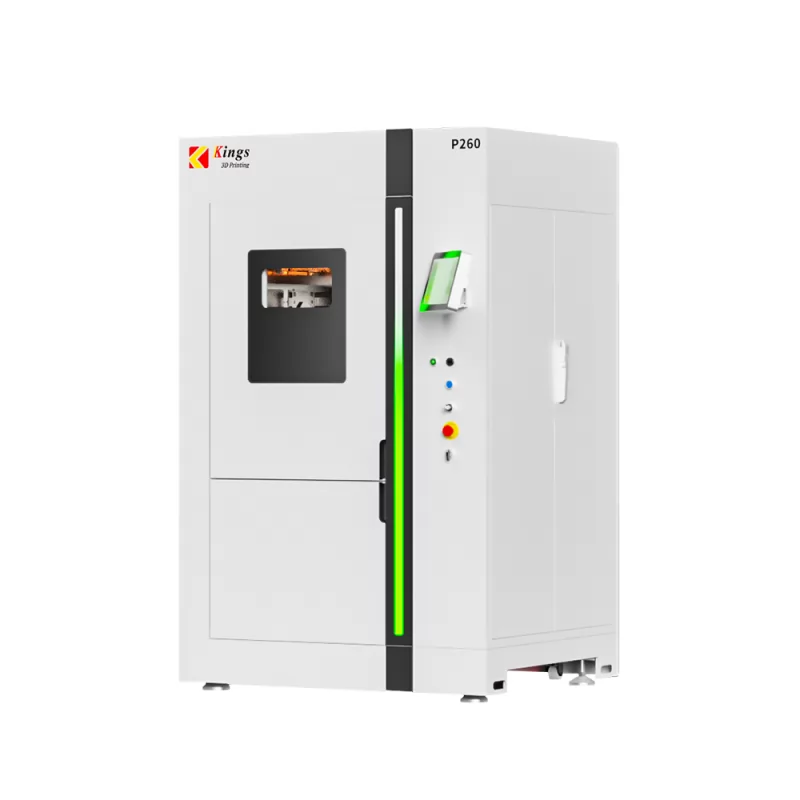

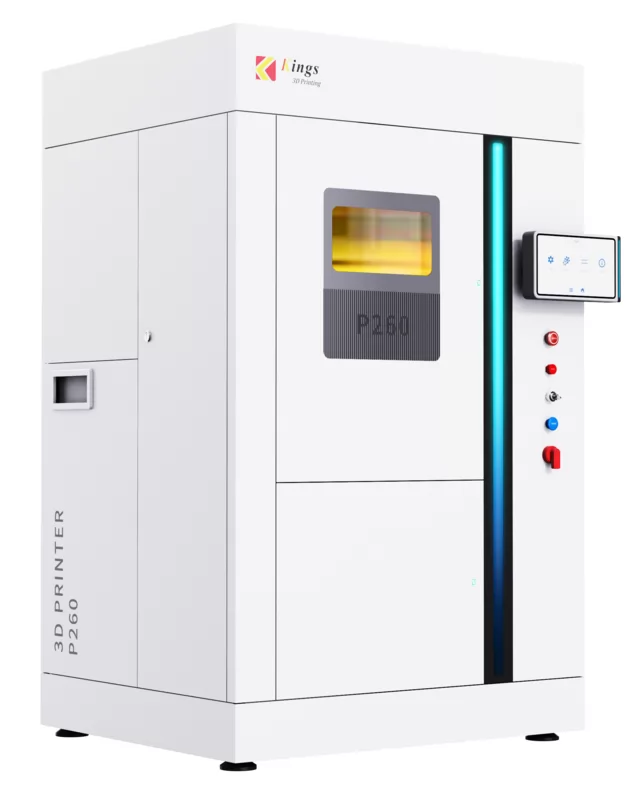

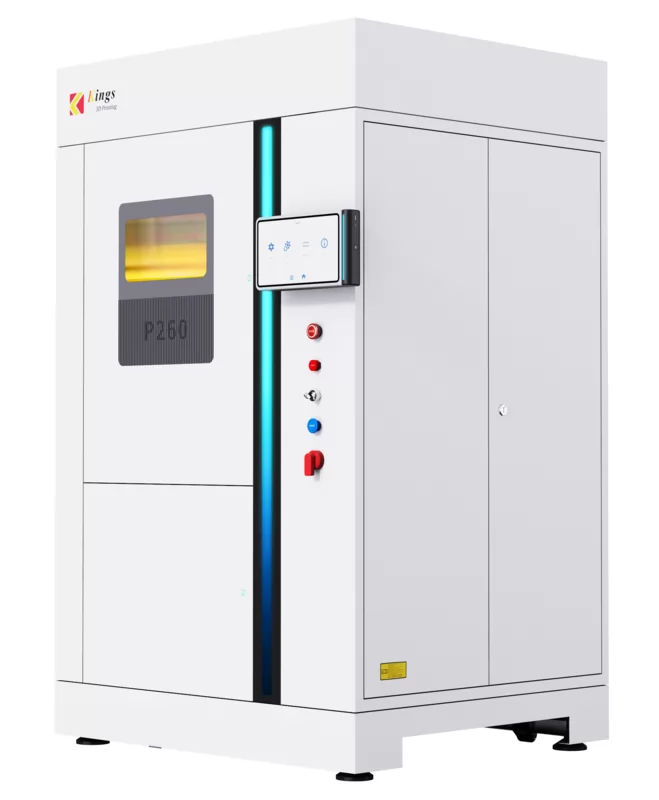

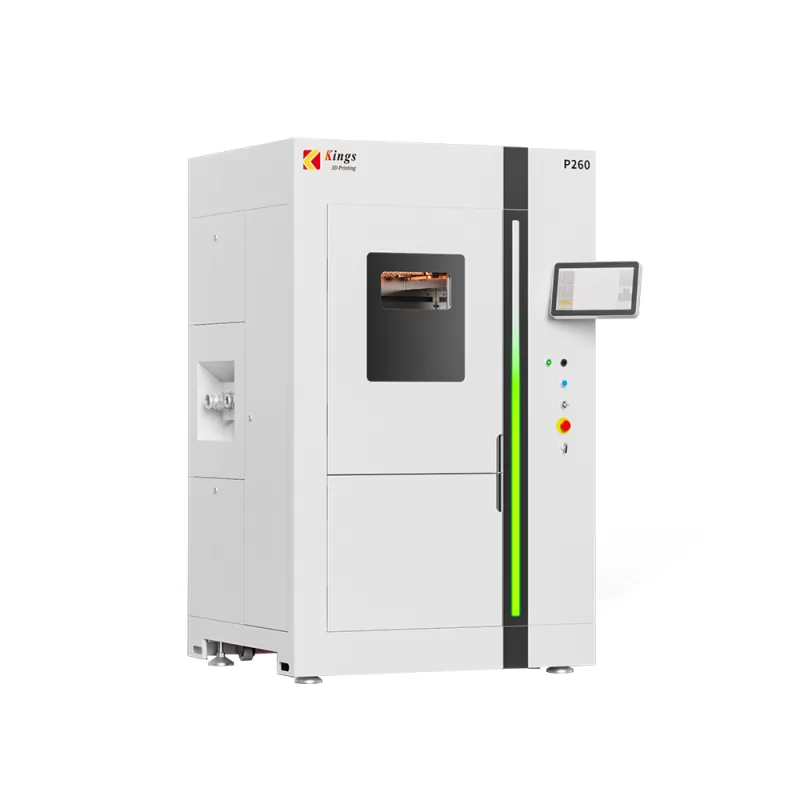

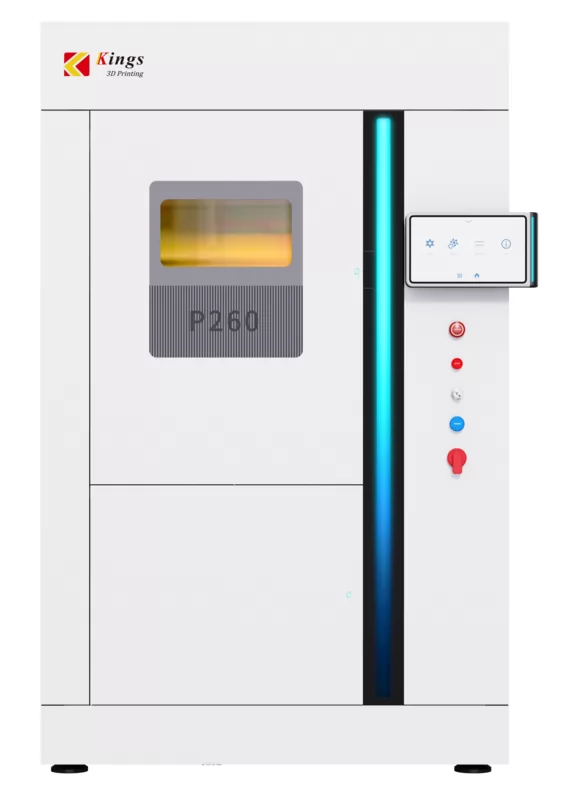

Kings P260 SLS 3D printer features a compact size, small footprint, simplified operation,
stable performance, and high efficiency. It is suitable for technical research, industrial design
validation, and developments in the medical and automotive fields.
Advantages
1. Compact Structure, Small Footprint
P260 is equipped with a built-in powder supply system and a lifting printing platform. The printer adopts a modular
design and compact structure.
2. Easy Operation, User friendly
The user-friendly software maximally simplifies operations. Working efficiency is improved by the easily removable
and replaceable forming cylinder.
3. Stable Performance, High Efficiency
Three-axis dynamic focusing technology is utilized, combined with partitioned independent temperature control
systems to achieve an excellent thermal field effect, ensuring high precision of components.
4. Adjustable Parameters, Strong Material Compatibility
The open material system makes it suitable for scientific research, development, and application of new materials. All
parameters can be adjusted independently.
5. High Use Rate of the Nylon Powder
With rich experience in equipment and material research, Kings 3D has developed various types of Nylon Powder
for SLS printers, boasting a high powder reuse rate.
Ideal Applications
Widely used in Automotive, Medical, Animation, Prototype, Education and Footwear industries.
Basic Parameters
Machine Size
| 1250*1060*2575mm |
| Forming Cylinder Size | 260*260*400mm |
| Net Weight Of The Equipment | 800kg |
| Powder Layer Thickness | 0.1-0.12mm Adjustable |
| Scanning Speed | 7000mm/s |
| Laser System | CO₂ Laser System, 60W |
| Galvanometer Scanner | Three-axis Dynamic Focusing Scanning System |
| Sintering Temperature | 170℃ |
| Temperature Field Control | Zone Independent Control |
| Operating System | 64-bit Windows 10 |
| System Control Software | Kings Self Developed SLS-P260 |
| Data Format | SLC File or Other Convertible Formats |
| Power Requirements | 380V±10%, 3~N/PE, 50/60Hz, 24A |
| Operating Environment Temperature and Humidity | Constant Temperature 25℃, Humidity ≥30% Non-condensing |
| Forming Materials | PA12, PA12GF, TPU-23 |
